Cloudy with a chance of biology...

The delivery of membrane proteins to subcellular compartments is essential for eukaryotic life with errors causing severe diseases. Professor Michael Schrader tells us about his team’s work on the use of weather forecast technology to predict membrane protein targeting and how it can be used to explore biology and improve health

Proper sorting and delivery of proteins is of fundamental importance for cellular function and therefore the viability of any organism. Many proteins contain defined signal sequences and unique physicochemical properties that determine targeting to specific cellular compartments.

The majority of transmembrane proteins are inserted into their target membrane, for example the endoplasmic reticulum (ER), as they are synthesised by the ribosomes (known as co-translational insertion). Tail-anchored (TA) membrane proteins represent an interesting exception: they possess a single transmembrane domain (TMD) close to their C-terminus (C-terminal tail), which is released from the ribosome only after termination of translation. Thus, sorting and insertion require post-translational mechanisms¹.

TA proteins are routed to the ER where they get access to the secretory pathway, but also to the membranes of other organelles such as mitochondria and peroxisomes (Figure 1). At all of those locations, they are inserted via their C-terminus, and expose their N-terminal functional domain to the cytosol. This makes them ideal adaptors for key processes at cellular membranes which require membrane anchorage – for example organelle division, apoptosis, vesicle targeting, membrane fusion, lipid trafficking, enzyme catalysis and anti-viral signalling^1,2. Many TA proteins are therefore of medical importance and have been linked to human disorders associated with metabolic, developmental or neurological defects.

Despite their functional and medical importance, the mechanisms and signals mediating TA protein targeting remain unclear. Considerable progress has been made in the mechanistic understanding of TA protein delivery to the ER via the so called GET (Guided Entry of Tail-anchored proteins) pathway³, whereas targeting to mitochondria and peroxisomes is less well understood. Interestingly, mitochondria and peroxisomes share several TA proteins⁴, adding another twist to TA protein targeting in mammalian cells.

Stay on target

In our recent study, published in the Journal of Cell Science, we focussed on how targeting is coordinated to control organelle selection in mammalian cells⁵. We first performed immunofluorescence and expression studies to examine a number of TA proteins for subcellular localisation. This approach increased the number of known peroxisomal TA proteins and revealed additional TA proteins shared by mitochondria and peroxisomes. These findings then allowed us to analyse the C-terminal sequences of 51 TA proteins with peroxisomal, mitochondrial or ER localisation and to compare their physicochemical parameters.

C-terminal targeting signals of TA proteins are supposed to consist of general physicochemical parameters such as TMD hydrophobicity and tail charge. Our study revealed that a general property of all identified peroxisomal TA proteins is a highly positive net charge in the tail region, which distinguishes them from mitochondrial and ER TA proteins. We also determined that a hydrophobic TMD and low tail charge support ER targeting (Figure 1).

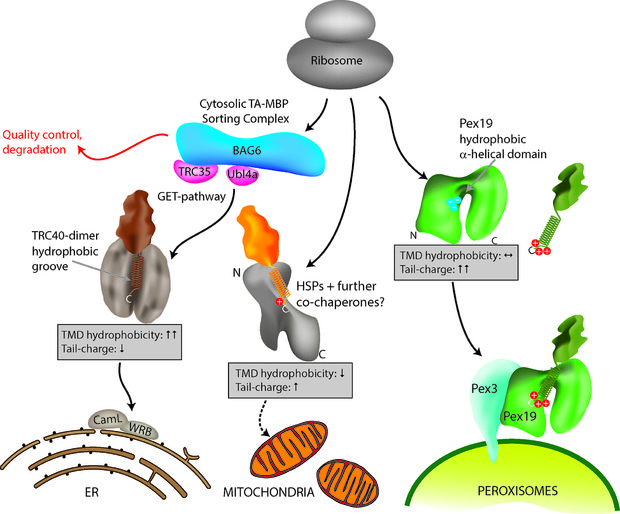

[caption id="attachment_64727" align="alignnone" width="2126"] Figure 1: Model for TA protein targeting to subcellular organelles. Specific delivery of TA proteins to the ER, mitochondria and peroxisomes in mammalian cells is mediated by a combination of TMD hydrophobicity and tail charge. Targeting of TA proteins to the ER involves the GET (Guided Entry of Tail-anchored proteins) pathway. ER TA proteins interact with a cytosolic sorting complex (composed of BAG6, TRC35/GET4, Ubl4a/GET5) and are delivered and inserted into the ER membrane by TRC40 (GET3) and WRB (GET1). A WRB/CAML dimeric membrane receptor (functional homolog to GET1/2) accepts the TA protein from TRC40 at the ER. Figure taken from Costello et al., J Cell Sci 130:1675-1687. DOI: 10.1242/jcs.200204.[/caption]

The bioinformatics results were verified by mutational analyses of model TA proteins such as ACBD5, a peroxisomal acyl-CoA binding domain protein, or GDAP1 (Ganglioside Induced Differentiation Associated Protein 1), which localises to both mitochondria and peroxisomes⁶. We confirmed that a highly charged tail in combination with a moderately hydrophobic TMD directs TA proteins to peroxisomes. Interestingly, only subtle changes were required to alter TA protein distribution. A reduction in tail charge or TMD hydrophobicity delivered peroxisomal TA proteins to mitochondria whereas low charges in combination with a highly hydrophobic TMD directed them to the ER (Figure 1). An increase in tail charge increased peroxisomal targeting and directly opposed the hydrophobic ER signal in the TMD. We also revealed that an increase in TMD hydrophobicity can override tail charge and route peroxisomal TA proteins to the ER.

Overall, neither tail charge nor TMD hydrophobicity alone directs TA proteins to their target organelle; we discovered that targeting is determined by a combination of TMD hydrophobicity and tail charge, and that both act as directly opposing signalling parameters (Figure 1). An increase in one can override the other and re-direct a TA protein from the ER to peroxisomes or mitochondria and vice versa.

An interesting and medically relevant example is fatty aldehyde dehydrogenase (FALDH), which has been linked to Sjögren-Larsson syndrome, a rare disorder characterised by skin defects and mental retardation due to toxic accumulation of lipid species⁷. Different splice variants of FALDH with peroxisomal or ER localisation exist⁸; both variants share a highly hydrophobic TMD, which (in combination with a negative charge in the tail), routes the major isoform, FALDH-ER, to the ER. The peroxisomal variant, FALDH-PO, only differs from FALDH-ER in its C-terminal tail, which is highly charged (+9.1), and thus able to override TMD hydrophobicity⁵. The membrane topology of FALDH was unclear, and we provided evidence that FALDH is a bona fide TA protein with its C-terminus anchored to the organelle membrane and the N-terminus with its catalytic domain exposed to the cytosol⁵. Knowledge on membrane topology assists understanding of lipid degrading pathways⁷.

Proteomic forecast

Next, we aimed to use the compiled data to predict the targeting of uncharacterised TA proteins. In cooperation with Doug McNeall from the Met Office we adapted a machine learning technique, similar to methods used for weather and climate forecasting, to our biological problem. Using our data on TMD hydrophobicity, tail charge and organelle localisation; we trained a support vector machine (SVM) classifier, thus generating a statistical model to predict the probability of a TA protein to be targeted to each organelle (Figure 2).

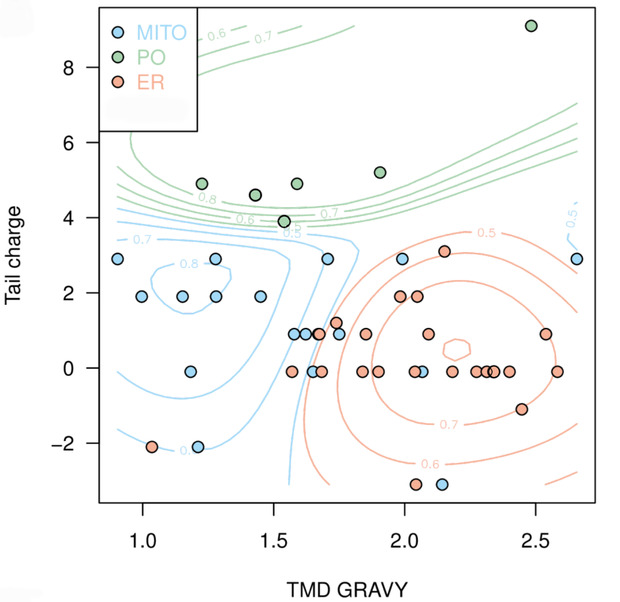

[caption id="attachment_64728" align="alignnone" width="2092"] Figure 2: Prediction map with probability contours showing clustering of TA membrane proteins to different organelle locations based on hydrophobicity and tail charge. Peroxisomes, green; mitochondria, blue; endoplasmic reticulum, red. Figure taken from Costello et al., J Cell Sci 130:1675-1687. DOI: 10.1242/jcs.200204.[/caption]

The predictive power of our classifier was assessed by the analysis of a published list of predicted human TA proteins⁹ which generated probabilities for peroxisomal, mitochondrial and ER targeting. We experimentally verified the predicted localisation of selected proteins. For example, ACBD4, a predicted peroxisomal candidate TA protein, was indeed found to localise to peroxisomes⁵. Due to similarities in the N-terminal acyl-CoA binding domain, ACBD4 shares 58% sequence identity with ACBD5, but the amino acid sequence in the C-terminus is significantly different.

Tailored tails

It should be noted, that besides TMD hydrophobicity and tail charge, other parameters may influence the targeting and localisation of TA proteins in mammalian cells. Additional factors relevant for targeting could include the position of hydrophobic and charged residues in the tail, the helical content of the TMD³, or the accessibility of the tail region. Knowledge about those parameters could be added to the classifier and would further improve its predictive power.

It should also be considered that besides these primary targeting mechanisms, subcellular localisation of TA proteins can be further controlled by removal and destruction of TA proteins which insert into the incorrect membrane (Figure 1). Understanding those quality control mechanisms at organelle membranes will be a further challenge in TA protein targeting¹⁰.

However, our results now allow for the modification of the physicochemical properties of the TMD and tail region and for the tailoring of C-terminal regions with optimised targeting parameters. Knowledge generated in our study can support the design of membrane adaptors and the delivery of molecules to specific subcellular compartments. It may also support the design and targeting of drugs and benefit the pharmaceutical and health sectors.

Into the unknown

The localisation and functions of many predicted TA proteins within the human genome are unknown, and many TA proteins are uncharacterised. Our predictor now allows us to link potentially new membrane-associated functions with peroxisomes and other organelles. First examples are the acyl-CoA binding domain proteins ACBD5 and ACBD4, which have been identified as bona fide peroxisomal TA proteins in our study. We very recently revealed that both ACBD5 and ACBD4 are involved in the association of peroxisomes with the ER^11,12.

An intimate association of peroxisomes and the ER has already been observed in ultrastructural studies in the 1960s, but the molecular mechanism was unknown. We revealed that both ACBD5 and ACBD4 act as molecular tethers which interact with another TA protein, the ER resident VAPB (vesicle-associated membrane protein-associated protein B) to generate peroxisome-ER membrane contact sites^11,12. These contacts are important for the metabolic cooperation of peroxisomes and the ER in lipid synthesis, e.g. of myelin sheath lipids¹³, and in membrane expansion/biogenesis of the peroxisomal compartment¹¹.

The first patients with loss-of-function mutations in ACBD5 have very recently been identified^14,15. They are characterised by retinal dystrophy, white matter disease and an accumulation of very-long-chain fatty acids (VLCFA), which can only be degraded in peroxisomes. ACBD5 deficiency is a novel peroxisomal disorder associated with impaired VLCFA metabolism and potential impairment of peroxisome-ER cooperation.

ACBD4/5 are just two examples of TA proteins where knowledge of the targeting location provided vital information that helped us to understand how these proteins function. Future studies will now have to verify the localisation of other TA proteins which were predicted by our classifier. Those studies need to elucidate their cell type or organ-specific expression, their cellular functions and their importance for human biology and health.

Acknowledgements This work was supported by the Biotechnology and Biological Sciences Research Council (BB/K006231/1, BB/N01541X/1), the Fundaça?o para a Ciência e a Tecnologia (Portuguese Foundation for Science and Technology) and Fonds européen de développement régional (FEDER/COMPETE) (PTDC/BIA-BCM/118605/2010; SFRH/BPD/74428/2010).

References

1. Borgese N and Fasana E (2011) Targeting pathways of C-tail-anchored proteins. Biochim Biophys Acta 1808:937–946
2. Dixit E, Boulant S, Zhang Y, Lee AS, Odendall C, Shum B, Hacohen N, Chen ZJ, Whelan SP, Fransen M, Nibert ML, Superti-Furga G, and Kagan JC (2010) Peroxisomes are signaling platforms for antiviral innate immunity. Cell 141:668-81
3. Rao M, Okreglak V, Chio US, Cho H, Walter P and Shan S (2016) Multiple selection filters ensure accurate tail-anchored membrane protein targeting. Elife 5:e21301
4. Schrader M, Costello J, Godinho LF, and Islinger M (2015) Peroxisome-mitochondria interplay and disease. J Inherit Metab Dis 38:681-702
5. Costello J, Castro I, Camões F, Schrader TA, McNeal D, Gomes S, Giannopoulo N, Pogenberg V, Bonekamp N, Ribeiro D, Wilmanns M, Islinger M, and Schrader M (2017) Predicting the targeting of tail-anchored proteins to subcellular compartments in mammalian cells. J Cell Sci 130:1675-1687. DOI: 10.1242/jcs.200204.
6. Huber N, Guimaraes S, Schrader M, Suter U, and Niemann A (2013) Charcot-Marie-Tooth disease-associated mutants of GDAP1 dissociate its roles in peroxisomal and mitochondrial fission. EMBO Rep 14:545–552
7. Keller MA, Zander U, Fuchs JE, Kreutz C, Watschinger K, Mueller T, Golderer G, Liedl KR, Ralser M, Kräutler B, et al. (2014) A gatekeeper helix determines the substrate specificity of Sjögren-Larsson Syndrome enzyme fatty aldehyde dehydrogenase. Nat. Commun 5:4439
8. Ashibe B, Hirai T, Higashi K, Sekimizu K, and Motojima K (2007). Dual subcellular localization in the endoplasmic reticulum and peroxisomes and a vital role in protecting against oxidative stress of fatty aldehyde dehydrogenase are achieved by alternative splicing. J Biol Chem 282:20763–20773
9. Kalbfleisch T, Cambon A, and Wattenberg BW (2007) A bioinformatics approach to identifying tail-anchored proteins in the human genome. Traffic 8:1687–1694
10. Okreglak V, and Walter P (2014). The conserved AAA-ATPase Msp1 confers organelle specificity to tail-anchored proteins. Proc Natl Acad Sci USA 111:8019–8024
11. Costello J, Castro I, Hacker C, Schrader TA, Metz J, Zeuschner D, Azadi AS, Godinho LF, Costina V, Findeisen P, Manner A, Islinger M, and Schrader M (2017) ACBD5 and VAPB mediate membrane associations between peroxisomes and the ER. J Cell Biol 216:331-342
12. Costello J, Castro I., Schrader TA, Islinger M, and Schrader M (2017) Peroxisomal ACBD4 interacts with VAPB and promotes ER-peroxisome associations. Cell Cycle May 2:1-7 [Epub ahead of print]
13. Hua R, Cheng D, Coyaud É, Freeman S, Di Pietro E, Wang Y, Vissa A, Yip CM, Fairn GD, Braverman N, Brumell JH, Trimble WS, Raught B, and Kim PK (2017) VAPs and ACBD5 tether peroxisomes to the ER for peroxisome maintenance and lipid homeostasis. J Cell Biol 216:367-377
14. Ferdinandusse S, Falkenberg K, Koster J, Mooyer P, Jones R, van Roermund C, Pizzino A, Schrader M, Wanders RJA, Vanderver A, and Waterham HR (2017) ACBD5 deficiency causes a defect in peroxisomal very long-chain fatty acid metabolism. J Med Genet 54:330-337
15. Yagita Y, Shinohara K, Abe Y, Nakagawa K, Al-Owain M, Alkuraya FS, Fujiki Y (2017) Deficiency of a retinal dystrophy protein, acyl-CoA binding domain-containing 5 (ACBD5), impairs peroxisomal ?-oxidation of very-long-chain fatty acids. J Biol Chem 292:691-705

The Author Professor Michael Schrader is a molecular cell biologist in the Department of Biosciences at the University of Exeter. He studies organelle dynamics and cooperation in health and disease. m.schrader@exeter.ac.uk

The team: Dr Joe Costello is a molecular biologist at the University of Exeter. He is interested in studying how proteins are targeted in human cells and how errors in this process are linked to disease.

Dr Doug McNeall is a climate scientist and statistician at the Met Office Hadley Centre, Exeter.

Dr Markus Islinger is a cell biologist in the Institute of Neuroanatomy at the Medical Faculty Mannheim of the University of Heidelberg, Germany. He is interested in the neuronal impact of metabolic changes associated with organelle disorders.
